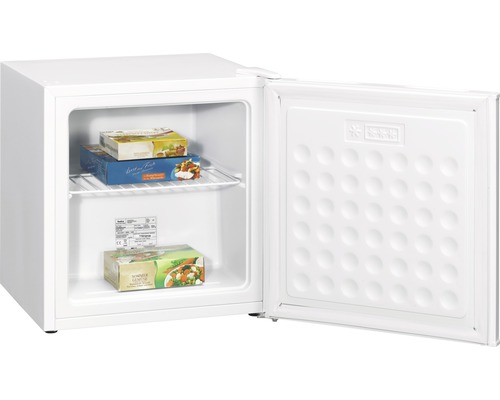

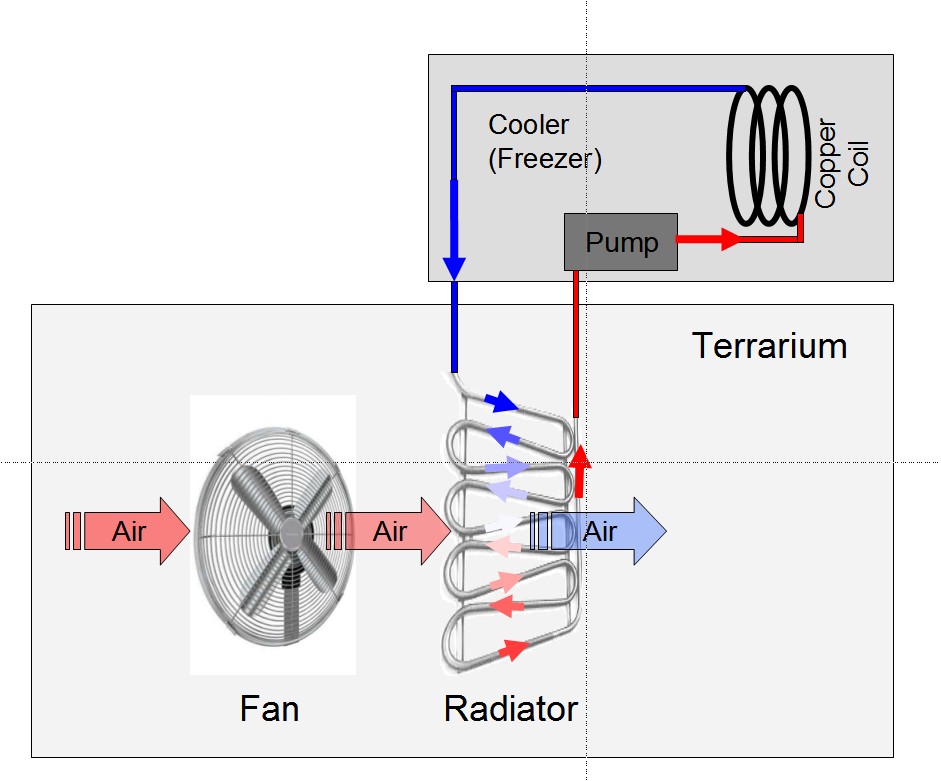

Martin Hingst Posted August 3, 2008 Report Share Posted August 3, 2008 (edited) Hi, after some first promising results I decided to post some infos on my cooling unit here. I want to say that this is not my invention, even the way of diverting the parts from its intended use is not my idea. But maybe new to some of you, and maybe some others find my way of documentation helpful . Is cooling really worth it? Well, that was exactly my question. Of course I had no doubt that it would be useful, because of the great difference in the temperature constants of assimilation and dissimilation rate in the highland plants. But worth it to go all the effort and money that a cooling unit would bring? As I have other highlanders that come along fairly good without it, and the prices for special terrarium equipment are outrageous, I chose to pay more attention on the other cultivation parameters as light, substrate and so on. But especially with my highland Utricularia, and esp. those that werent already adapted over years to our living room conditions, I did not find a satisfying way. Their years growth mainly occurred in those few weeks in March and October, when (what I like to interprete now) the temperature range was suitable. So finally I decided to give it a go. Cooling element As cooling element I use a water cooled radiator with a 12 cm fan behind, that blows the air through the radiator. Thanks to the modders that have to cool down their cpus, there is now a market for these, so prices went down significantly, and there are many ready-to-use solutions to buy. The modders use it in a different way, to cool down the circulation water heated by their cpus to room temperature, but why not the other way round? As I said, not my idea, just my way to put the components together. Water as cooling medium So how to cool down the radiator? Water with a 30% amount of Glysantin ( the antifreezer you use for your cars) is an excellent medium, it prevents corrosion inside the radiator and lowers the freezing temperature of water. But how to get it cool? After my first and frustrating attempts with a Peltier camping thermo box I bought a little compressor freezer where the pump and a copper cooling coil is placed in. My freezer has 85 Watt, seems to be enough by now. . Even better, but still much more expensive, are flow coolers. Maybe because they are still most commonly used by professional cooling in gastronomy, or aquarium / terrarium cooling. A little bit cheaper than those cryostats used in laboratory, but still too expensive for me. But I am putting my high hopes in the modders here, they have already discovered these flow coolers to get under room temperature. Time and prices will tell. Another way may be to get a cheap, used beer cooler or sth on ebay. But you never know in what condition the compressor is, esp. its coolant Water circulation I use the pump that was included in the watercooling set (Eheim 1046). There are cheaper pumps to buy, no idea if they stand the cool water for a long time. I insulated the hoses outside the freezer, that seems to be quite important, and kept it short. Insulation I first did no insulation, just as a try I have now put Styrofoam boards under and around the terrarium except the top and front. It has not shown that great effect, but I did not really seal it, as I wanted to avoid heat build-up during the day, when the lamps are on. Anyway, it brings some light reflection too. First experience Maybe a bit too early to give a résumé, but I had already some promising results. Many plants are beginning to go off now, in a time of the year where most of them just ceased before. And some of them even started to flower, that have never bloomed in summer. Or never bloomed at all in all the years, like my U. humboldtii x quelchii The tank is placed in my storeroom, where temperatures did not fall below 25°C already on some warmer May nights, with a temperature inside the tank even one or two degrees higher. I now get night temperatures inside the tank of around 15 degrees Celsius, the lowest this summer was 10°C, the highest 17°C, taken in the early morning. So the cooling effect is about 10 degrees down. What would I do different next time? Well, first of all skip that nasty camping thermo box. Waste of money. For those who would doubt that I still have a quite unused one to offer for your try in my cellar Then: maybe not a complete watercooling set, the single components are cheaper to get maybe. But the set has one advantage all components fit to each other, so difficult to say. Next I will try is a flow cooler, because those freezers' compressors are not made for continuously running (even though I run it only though the night, and some hours in the afternoon), and my compressor smells and sounds a bit like it wont live foreverbut first the prices have to fall down a bit more. Costs? The watercooling set was 140, and 150 for the freezer. The rest is altogether maybe another 20. Current draw is somewhere around 90 Watts. Happy highland growing Martin Edited February 6, 2018 by Martin Hingst repaired image links Quote Link to comment Share on other sites More sharing options...
Cas Posted August 4, 2008 Report Share Posted August 4, 2008 Thanks Martin.. this is really useful! I've been trying to cool my 2ft tank that is insulated all round with styrofoam.. first attempt is with a 90W+ peltier cooler but that only managed to bring the tank temp down by 3C+. Now I use 3 Coleman cooler blocks hung from the top of the tank each night. This brings the tank temp down by about 10C. By morning, however, temp in the tank's about 24-25C (our mornings are typically 28-29C this time of the year). ..Now very tempted to try what you've done.. Quote Link to comment Share on other sites More sharing options...
LJ Posted August 4, 2008 Report Share Posted August 4, 2008 Very interesting Martin I would love to have something to cool my growing area down at night a bit more, unfortuntely I wouldnt know where to start trying to put something together like that. Well done!! The results sound very promising too Heather Quote Link to comment Share on other sites More sharing options...
Martin Hingst Posted August 4, 2008 Author Report Share Posted August 4, 2008 (edited) Hi Heather, sorry if I kept it too confusing, but these watercooling sets are already ready to use, and the instruction that comes with it are for customers like ordinary PC users - not all of those are experienced tinkerer To bring it to the point: All I had to do is to integrate this cooling coil into the water circulation and place it together with the pump inside the freezer. The coil was one of the easiest - and cheapest things, I made it by just bending a 3€ copper tube from the superstore to the desired shape. But those units would not be of any great help in a conservatory or sth., just for a smaller, closed volume like a terrarium. Snuffy, 29degrees in the morning? And I thought I got it bad already... good luck and regards Martin Edited August 4, 2008 by Martin Hingst Quote Link to comment Share on other sites More sharing options...
LJ Posted August 4, 2008 Report Share Posted August 4, 2008 Hi Martin Well, its my indoor growroom (coverted cupboard!!) that would benefit from some additional cooling rather than the greenhouse or conservatory. You almost make it sound easy putting that together - you have to remember though I'm a woman without practical DIY skills Perhaps one day I'll be brave enough to try something like that Heather Quote Link to comment Share on other sites More sharing options...
Cas Posted August 4, 2008 Report Share Posted August 4, 2008 Hi Martin, I'm wondering if you'll enjoy higher efficiency if you place the copper coils (presumably those are your heat exchanger?) as close as possible to the top of the freezer/cold plate? Possibly enclose it in plastic container and seal it off from the rest of the fridge? I'm thinking of all those hotel room mini-bar fridges, they have those tiny ice box compartments as close to the cold plate as possible - water freezes in them.. while the bottled drinks below never do. Quote Link to comment Share on other sites More sharing options...
Martin Hingst Posted August 4, 2008 Author Report Share Posted August 4, 2008 No brother or father with DIY skills, Heather? grandfathers are also well known for being extremely helpful - whenever they are asked for, and even when not provided you were a good granddaughter Snuffy, in the beginning I screwed the coil on the metal plate at the back of the inside, that is in close contact to the compressor. But it gave a bad resonance when the compressor started... so I untightened it, with no remarkable loss of efficiency. But when I need to, I will try that again - the really hot nights are yet to come. Quote Link to comment Share on other sites More sharing options...
UtricSeb Posted August 4, 2008 Report Share Posted August 4, 2008 Hello Martin. Your cooling setup sounds very interesting and your results seem to be quite good. It is a little hard to imagine it from just words. Do you think it is possible for you to show some pictures or a drawing showing how to assemble it? Kind regards, Sebastian Quote Link to comment Share on other sites More sharing options...
mobile Posted August 4, 2008 Report Share Posted August 4, 2008 Just a thought - I wonder if it would be possible to connect the cooling element directly into the refrigerant system. That way it would eliminate the losses in the air to water heat exchanger. It would need a refrigeration engineer to do it though as it would involve removing the existing refrigerant, soldering copper pipe into the existing circuit and recharging with refrigerant. Quote Link to comment Share on other sites More sharing options...
Mantis Posted August 4, 2008 Report Share Posted August 4, 2008 Your results are better than mine!! I used a Waeco Compressor cool box (minimum temperature -15°C), a slightly bigger radiator (39x12 cm), 1 fan (couldn't place more) and pvc tubing. First I placed the pump in the cool box but the pump generated too much heat. Next I placed the pump outside the box and placed tubing (in a spiral) inside the box with a small reservoir so there would always be enough liquid in the system. I used cooling liquid mixed with demineralised water. After many tests I gave up on this setup. I think the problem was that the cool box wasn't capable to process the warmth enough of my growing chamber and that my growing chamber and tubing wasn't insulated at all. Or that the water in the tubing didn't spent enough time in the cool box to cool down. In the end I would let the box cool the reservoir and tubing to the point of freezing but as soon as I switched on the pump the temperature quickly became 10°C with no real effect on the temperature inside. The next thing I want to try is to get the cool air from the box in the growing chamber with fans and piping. The days during my tests I noticed that I would size up all those nice open refrigerators in the supermarket and I even looked into the option of dry ice and liquid nitrogen Quote Link to comment Share on other sites More sharing options...
Martin Hingst Posted August 4, 2008 Author Report Share Posted August 4, 2008 Hello, Mantis, I would not give up, but use a stronger freezer. -15°C as given from the manufacturer seems not very effective. Mine gets around -25°C before the thermostat switches the compressor of, without that switching off it would get much deeper I am sure. But when I start my system, even my freezer gets not deeper than zero degrees, with a temperature of the circulation water at about +8 degrees. mobile, you are absolutely right - with both your suggestion and your It would need a refrigeration engineer to do it though Maybe when the system has to be refilled anyway (what may be sooner than I hope...) I will think about that. But my first hope is that the flow coolers (that do in princible what you suggested) are more affordable at that time. Sebastian, sorry I have taken no pictures in the built-up process, and drawings - well please believe me when I say you would not like to see that, and it would make it only more confusing So maybe some more words and some links to pictures of others: First I mounted the fan at the radiator's back and fixed the radiator at the top of the terrarium (with some wires it has a perforated dressing there for air exchange). The radiator has already the two adapters for connecting the two water hoses for in- and outgoing water. These two hoses I fed into the freezer - I drilled two holes in it (without hitting its essential parts ). One hose I connected to the inlet adapter of the pump. The other one to one end of the copper coil, the other end of the coil is connected to the outlet adaptor of the pump - thats it. To be more correct, there was another cooling piece in the setup - the cpu cooler. I also integrated it into the circulation, after the coil, in the same way, but you can forget about that - and can spare the money when buying the pieces one by one. It makes about a third of the setup's price... Here a picture of the cooling unit of Martin Reiner at drosophyllum.com The english version is under reconstruction at the moment, but I can suggest that as interestiong reading. I got my first inspirations from his page. I know that "the devil lives in the detail" what we say in German, and I did not want to let it sound as it was nothing. So if you have further questions, please ask. Regards Martin Quote Link to comment Share on other sites More sharing options...
gardenofeden Posted September 6, 2008 Report Share Posted September 6, 2008 Just a thought - I wonder if it would be possible to connect the cooling element directly into the refrigerant system. That way it would eliminate the losses in the air to water heat exchanger. It would need a refrigeration engineer to do it though as it would involve removing the existing refrigerant, soldering copper pipe into the existing circuit and recharging with refrigerant. yes, why not dissect an old fridge, remove the cooling "plate" and put it in the tank with the compressor etc outside? Linked to a thermostat you could get any temperature you liked. I saw a great unit once, someone used an old chest frezzer with a sheet of glass and lights on top, now that would be cold! Quote Link to comment Share on other sites More sharing options...
adams Posted September 7, 2008 Report Share Posted September 7, 2008 yes, why not dissect an old fridge, remove the cooling "plate" and put it in the tank with the compressor etc outside? Linked to a thermostat you could get any temperature you liked.I saw a great unit once, someone used an old chest frezzer with a sheet of glass and lights on top, now that would be cold! that may have been me Quote Link to comment Share on other sites More sharing options...
adams Posted September 7, 2008 Report Share Posted September 7, 2008 yes, why not dissect an old fridge, remove the cooling "plate" and put it in the tank with the compressor etc outside? Linked to a thermostat you could get any temperature you liked.I saw a great unit once, someone used an old chest frezzer with a sheet of glass and lights on top, now that would be cold! that may have been me Quote Link to comment Share on other sites More sharing options...
mobile Posted September 12, 2008 Report Share Posted September 12, 2008 yes, why not dissect an old fridge, remove the cooling "plate" and put it in the tank with the compressor etc outside? Linked to a thermostat you could get any temperature you liked. Like these?: http://pitcherplants.proboards34.com/index...6419&page=1 Quote Link to comment Share on other sites More sharing options...
adams Posted September 12, 2008 Report Share Posted September 12, 2008 what is the utricularia with the largest leaves in the picture? Quote Link to comment Share on other sites More sharing options...

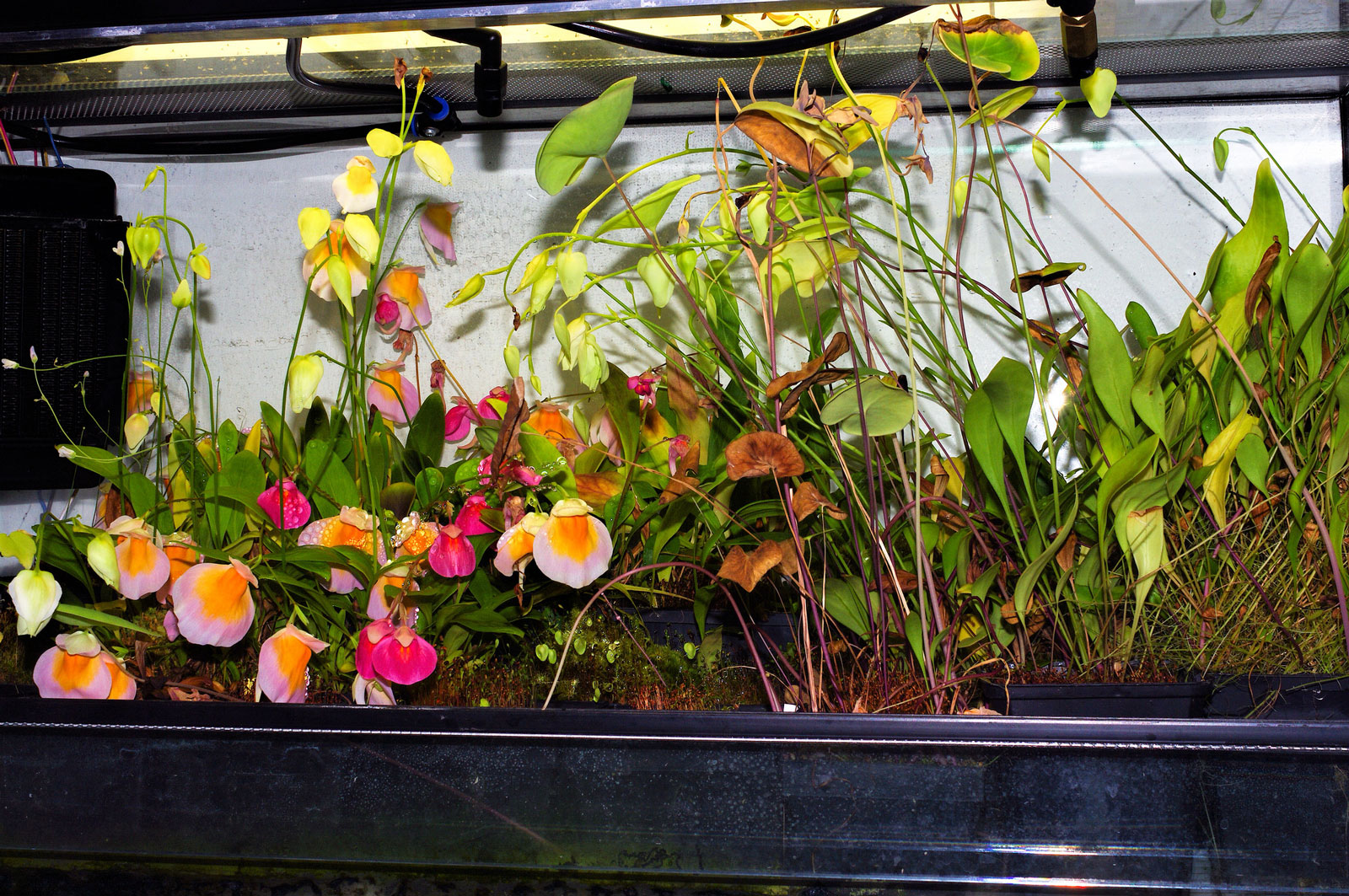

Martin Hingst Posted April 29, 2009 Author Report Share Posted April 29, 2009 Hello, after about a year, maybe a good point of time for a first conclusion. Fist the technical things : the freezer works still good - maybe I was a bit too scared in this point The pump is continuously running, day and night, for a year now, without any problems. No corrosion in the radiator, and the fan is doing its job well, despite the humid environment. Then the plants: I have never had better looking highland plants. Most of the plants are starting to flower, it will become very colourful in my tank in some weeks among the flowers some firsts - like U. longifolia and others. I will post some pics soon. As my description above was maybe not too clear, here a drawing of the principle. Hope that helps. Adams, the plant on the right is U. alpina 'Pittier Moon'. I will show you the results in flower soon - bye for now Martin Quote Link to comment Share on other sites More sharing options...
Dicon Posted April 29, 2009 Report Share Posted April 29, 2009 Martin, Have you considered filling the freezer with bottles of water to inprove efficiency. After the initial freezing of the water, the system would become easier to balance and the compressor could rest. An empty feezer is least efficient! Quote Link to comment Share on other sites More sharing options...
Sebulon Posted May 5, 2009 Report Share Posted May 5, 2009 Martin, can you post some picture sof your highland utrics by now. Can't wait to see them! I have U.alpina in a roomtemp terrarium, growing decently, but not as well as it could. I also have a few more highland utrics ordered, so I really need to make some cooler unit like this. Where did you get that cooling element in the first pic, did it come with the set you ordered? Where did you order the set? Do you use a fridge or freezer? I think I saw you telling it to be both in some paragraphs. Or maybe I was getting dizzy while reading the whole topic. Thanks for posting this useful topic, I have found it to be my lifesaver! Greetings, Jarkko Quote Link to comment Share on other sites More sharing options...
Martin Hingst Posted May 11, 2009 Author Report Share Posted May 11, 2009 Hi, thanks Dicon for the idea. I am sure you are right - that would buffer the cooling capacity, and the freezer could indeed rest. In terms of efficiency, something that has to be proven first. Worth a try. Jarkko, I use this cooling set here: http://www.webshop-innovatek.de/shop/Wasse...40-AM2-AM3.html and a link in English http://www.trend4pc.de/product_info.php/pr.../19/language/en I still use a freezer, but the prices of flow coolers (aquarium chillers) are going down now - I am not sure if I really need the higher cooling efficiency, but it would make the setup more professional - and more compact. And I could mix in more air from outside for better ventilation. Maybe some day. BTW, the first flower has opened up - U. alpina x campbelliana Not the shiest flowerer among the highland Utricularia - but a first for me. And I spotted some new stalks - U. jamesoniana among it. Maybe I will find the time for some pics this weekend. Regards Martin Quote Link to comment Share on other sites More sharing options...
vraev Posted May 11, 2009 Report Share Posted May 11, 2009 fantastic Martin. Thanks for sharing. I have always considered about trying something like this...although I didn't want to deal with getting a freezer just for the plant cooling. Canada's winter generally lasts from october to march. Then early spring of april and half of may isn't too bad. Its just june to october beginning that is dreadful and hot. I just got myself a new air conditioner. I am planning on putting it right next to my nepenthes setup and experiment with venting some of the cooled air into the setup....perhaps intersect the airflow mid-way with the flow from a humidifier and I think I should be golden. The only problem is controlling to cooling in both the "apartment" and "the nepenthes enclosure" Quote Link to comment Share on other sites More sharing options...
Guest Z_Canada Posted August 16, 2009 Report Share Posted August 16, 2009 Hello everyone. I liked Martin's setup so I made my own following his examples (I posted more info here, but it was mostly about automation and not about cooling, so I cut some text to stay on topic): Radiator The chiller and a bucket to catch condensation Control unit (not too involved with cooling) About the Cooling The cooling component involves an aquarium chiller (JBJ 1/15HP), a aquarium powerhead (a kind of pump, I used a cheap one called Marineland), some tubing, a 12cm fan from a computer store, and a used computer water cooling radiator I found off ebay. It follows the same principles as Martin's setup. Currently, my setup is not insulated, and I have a huge gap at the top of my terrarium, which is 50gal. Also, I did not use any antifreeze. The setup is still able to achieve day temps of 24C and night temps of 12C. I have set my chiller temperature to 50F. Without the cooling system, the temps are 30C in the day and 21C at night. I have some microcontrollers that control the fan so that it throttles to 24C in the day and turns on continueously at night (otherwise turning the fan on constantly will cause day temps of 18C, a little too low). Cost of Cooling I’d have to admit it was a little on the expensive side: $560 for the chiller (including shipping, UPS got me with their brokerage fees) $30 for the pump $10 for the tubing $33 for the radiator (including shipping) $7 for fan Total: $640 (Canadian) converts to 410 euros So yea, it is hard to justify the huge cost. I had to save up for quite a while. However, I do not have any cool room in my house that would be cold enough. In fact, my whole house is very cp hostile; I don’t even have a good windowsill! What didn't work for me Ice on top of a small terrarium does not work well too well, and changing it every morning and night gets old real fast. The condensation is also a problem if your floor can get damaged. Blowing air through a mini fridge and back into a terrarium does not work too well either. Combining the mini fridge and the ice can get really good temperatures, but again the condensation is a problem, and the noise and size is unwieldy for me. It was cheap though; however I gave up and returned the fridge within the 30day period (I didn't drill into the fridge, I just taped over the opening with some cardboard). Keeping a layer of water on the bottom of the terrarium with your plants in water trays separate from the water and having the terrarium water cycled through a chiller does not work well either. It can cool the soil down, but the air temperatures remain high. Also, condensation forms on the glass. If I were to do it again If I were to do it all again, I would have just skipped to the chiller. Although it is expensive, it works really well and it is really quiet, which is important since my terrarium sits right beside where I usually work. Quote Link to comment Share on other sites More sharing options...
Delwin Posted August 18, 2009 Report Share Posted August 18, 2009 Hello everyone. I liked Martin's setup so I made my own following his examples (I posted more info here, but it was mostly about automation and not about cooling, so I cut some text to stay on topic):Radiator The chiller and a bucket to catch condensation Control unit (not too involved with cooling) About the Cooling The cooling component involves an aquarium chiller (JBJ 1/15HP), a aquarium powerhead (a kind of pump, I used a cheap one called Marineland), some tubing, a 12cm fan from a computer store, and a used computer water cooling radiator I found off ebay. It follows the same principles as Martin's setup. Currently, my setup is not insulated, and I have a huge gap at the top of my terrarium, which is 50gal. Also, I did not use any antifreeze. The setup is still able to achieve day temps of 24C and night temps of 12C. I have set my chiller temperature to 50F. Without the cooling system, the temps are 30C in the day and 21C at night. I have some microcontrollers that control the fan so that it throttles to 24C in the day and turns on continueously at night (otherwise turning the fan on constantly will cause day temps of 18C, a little too low). Cost of Cooling I’d have to admit it was a little on the expensive side: $560 for the chiller (including shipping, UPS got me with their brokerage fees) $30 for the pump $10 for the tubing $33 for the radiator (including shipping) $7 for fan Total: $640 (Canadian) converts to 410 euros So yea, it is hard to justify the huge cost. I had to save up for quite a while. However, I do not have any cool room in my house that would be cold enough. In fact, my whole house is very cp hostile; I don’t even have a good windowsill! What didn't work for me Ice on top of a small terrarium does not work well too well, and changing it every morning and night gets old real fast. The condensation is also a problem if your floor can get damaged. Blowing air through a mini fridge and back into a terrarium does not work too well either. Combining the mini fridge and the ice can get really good temperatures, but again the condensation is a problem, and the noise and size is unwieldy for me. It was cheap though; however I gave up and returned the fridge within the 30day period (I didn't drill into the fridge, I just taped over the opening with some cardboard). Keeping a layer of water on the bottom of the terrarium with your plants in water trays separate from the water and having the terrarium water cycled through a chiller does not work well either. It can cool the soil down, but the air temperatures remain high. Also, condensation forms on the glass. If I were to do it again If I were to do it all again, I would have just skipped to the chiller. Although it is expensive, it works really well and it is really quiet, which is important since my terrarium sits right beside where I usually work. This is great. How you manage to control the day and night different?? Can share the thing involove?? Thks. Quote Link to comment Share on other sites More sharing options...
Guest Z_Canada Posted August 19, 2009 Report Share Posted August 19, 2009 This is great. How you manage to control the day and night different?? Can share the thing involove?? You kind of need a little bit of electronics experience to know what I'm talking about: In order to control the day and night differently, I used a thermistor and a some microcontrollers to control the day/night cycle. I have an RTC clock that keeps track of the time. The microcontroller retrieves the time from the RTC. If it finds that it is night time, it will simply turn on the radiator fan. If it finds that it is daytime, it will use a analogue to digital converter on the microcontroller and convert voltage signals form the thermistor (and a few resistors) into a value that it will use to determine the temperature. If the temperature is above 25C, it will turn on the fan until it is below 22C. I find that on average, the temperature buffer causes the day temperature to linger around 24C. I guess a simpler way would be to connect the fan to a timer from a store, and have it turn on at night and a few times during the day, although you'd have to experiment with the on/off intervals. Quote Link to comment Share on other sites More sharing options...
Delwin Posted August 19, 2009 Report Share Posted August 19, 2009 You kind of need a little bit of electronics experience to know what I'm talking about:In order to control the day and night differently, I used a thermistor and a some microcontrollers to control the day/night cycle. I have an RTC clock that keeps track of the time. The microcontroller retrieves the time from the RTC. If it finds that it is night time, it will simply turn on the radiator fan. If it finds that it is daytime, it will use a analogue to digital converter on the microcontroller and convert voltage signals form the thermistor (and a few resistors) into a value that it will use to determine the temperature. If the temperature is above 25C, it will turn on the fan until it is below 22C. I find that on average, the temperature buffer causes the day temperature to linger around 24C. I guess a simpler way would be to connect the fan to a timer from a store, and have it turn on at night and a few times during the day, although you'd have to experiment with the on/off intervals. Thks, If this case, the chiller will have to work 24hour/7/365days?? Quote Link to comment Share on other sites More sharing options...
